High Security Motorised Hook Lock

FSHHL1260

New product

High Security Motorised Hook Lock

More details

Balcatta: 1
Geebung: 0

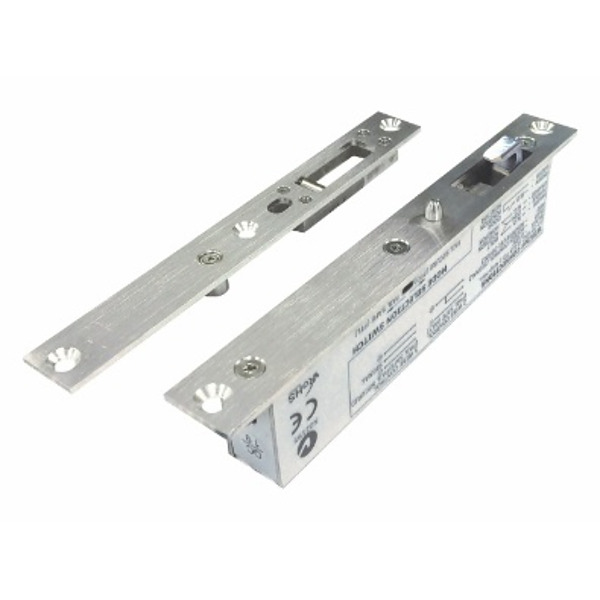

The patented HL1260 is a high torque motor driven hook lock for a sliding door. It can be installed vertically in the door frame (lock style) with the strike plate mounted on the edge of the door. Alternatively, there is a surface mount box for the strike plate and/or lock for a sliding door.

The HL1260 consumes an in-rush current of 290mA@12VDC only during locking and unlocking action (Active Mode), then in the locked or unlocked state (Sleep-Mode), it consumes current less than 15mA@12VDC.

The HL1260 hook lock should not be exposed to wind and weather as it is not IP rated.

We recommend operating the product in 3-Wire-Mode (See installation manual).

Features

  • Motorised locking device
  • Durability tested to 400,000 cycles
  • Multi Voltage operation 11-30VDC
  • Sleep-Mode Current less than 15mA@12VDC
  • Fully monitored including reed switch for door position
  • Up to 650kg Holding Strength
  • Up to 4-hour fire rated in accordance with AS1905.1:2015 (contact Allegion for more details)
  • Conforms to S3* (Security) and D3 (Durability) Australian Lock Standard (AS4145.2 : 1993)
  • Certifications Up to 4-hour fire rated
  • Colour Silver
  • Holding Strength Up to 650kg
  • Voltage Multi Voltage 12-30VDC
  • Warranty 5 Years
