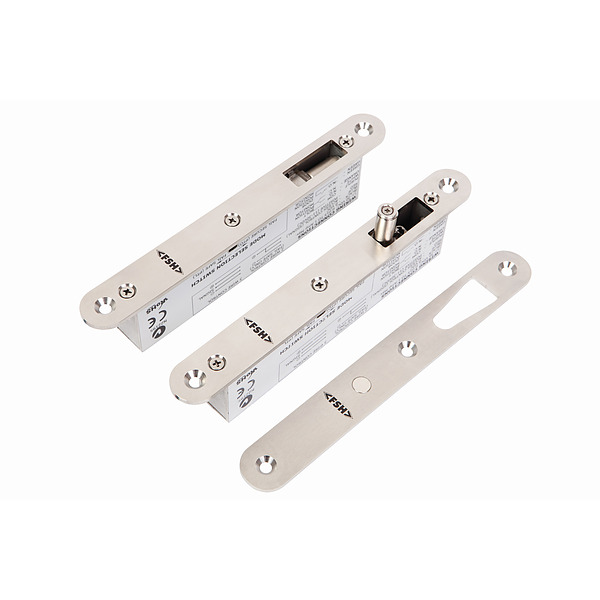

Drop Bolt View larger

FSH

Drop Bolt

FSHVE1260R

New product

Drop Bolt

More details

Balcatta: 1
Geebung: 0

The patented VE1260 is a high torque motor driven drop bolt with up to 35kg pre-load/side load tolerance. It can be installed vertically in the door frame (lock style) or horizontally in the frame header and has a symmetric dead-bolt mechanism to allowing it to be used on 180° degree swing through doors.

The VE1260 consumes an inrush current of 290mA@12VDC only during locking and unlocking action (Active Mode), then in the locked or unlocked state (Sleep Mode), the drop bolt consumes current less than 15mA@12VDC.

A series of additional Strike Plates allow for door misalignment of up to ±12mm and a retrofit version of the FSH Lock is available to suit the PADDE/TRIMEC ES8000 drop bolt footprint.

We recommend operating the product in 3-Wire-Mode (See installation manual). An optional LED red/green indicator unit is available.

Features

  • Releases with up to 35kg of Pre-Load/Side Load (3-wire mode)
  • Durability tested to 400,000 cycles
  • Multi Voltage operation 11-30VDC
  • Sleep-Mode Current less than 15mA@12VDC
  • Fully monitored including reed switch for door position
  • Up to 1000kg Holding Strength
  • Up to 4-hour fire rated in accordance with AS1905.1:2015 (contact Allegion for more details)
  • Conforms to S3* (Security) and D3 (Durability) Australian Lock Standard (AS4145.2 : 1993)
  • Retrofit version for Trimec/PADDE ES8000 (VE1260S Square Edge Version)
  • HL1260-SMK is an optional accessory
  • Certifications Up to 4 Hour Fire Rated
  • Colour Silver
  • Holding Strength Up to 1000kg
  • Voltage Multi Voltage 11-30VDC
  • Warranty 5 Years
