> >>Electromagnetic Lock - Double
Electromagnetic Lock - Double View larger

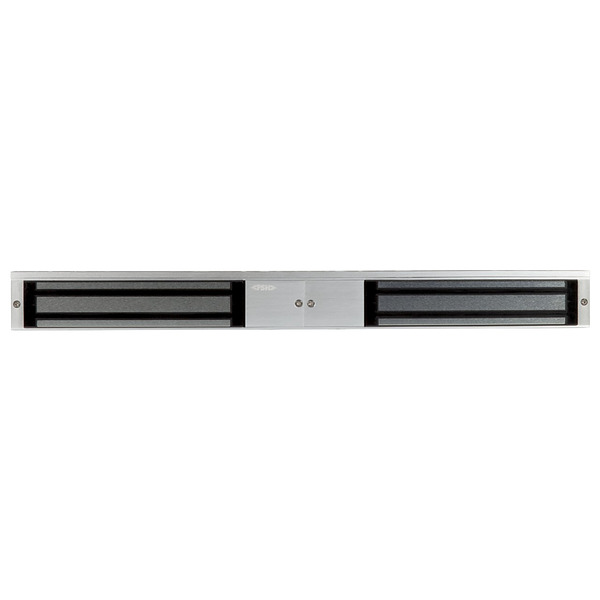

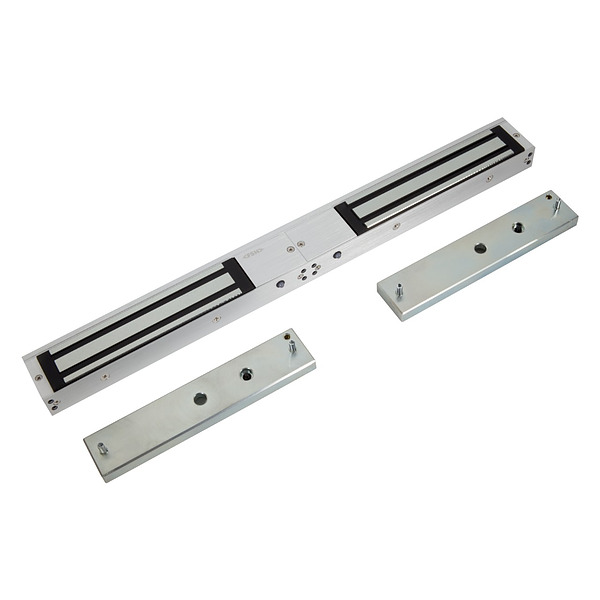

Electromagnetic Lock - Double

FSHFEM4300D

New product

Electromagnetic Lock - Double

More details

The FSH FEM4300 Series of electromagnetic Locks come with a 5 year mechanical warranty and a hold strength of up to 280kg, so you have the peace-of-mind that entrances are secured to protect people and property.

Tested to Australian and New Zealand standards, including a 2-hour fire rating, these maglocks are Dual Voltage, 12/24VDC, and come in single or double (D) versions, either monitored (M) or non-monitored. Once powered off, the maglocks have no residual magnetism, which extends the life of the lock and door and gives a better user experience.

The monitored versions (M), include a red-green coloured LED indicator to quickly identify the door and lock status. Activated by a number of credential readers such as PIN pads, fob readers or other access control platforms, this range is ideal for most commercial applications.

Features

  • Dual Voltage: 12 /24 VDC field selectable
  • Door and Lock Status Monitoring Sensor (DSS and LSS S with “M” Models)
  • Built-in varistor (MOV) surge protection
  • Red-Green bicolour LED on monitored version
  • No residual magnetism
  • Fire Rated (up to 2-hour fire rated in accordance with AS 1905.1:2015)
  • Colour Silver
  • Compliance 2-hour fire rated
  • Dimensions (H x W x D) 477 x 48 x 25mm
  • Holding Strength Up to 280kg
  • Voltage Dual Voltage 12/24VDC
  • Warranty 5 Years
