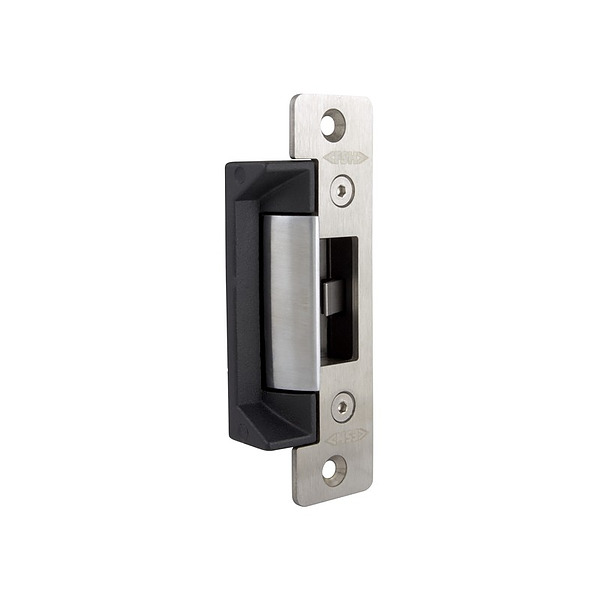

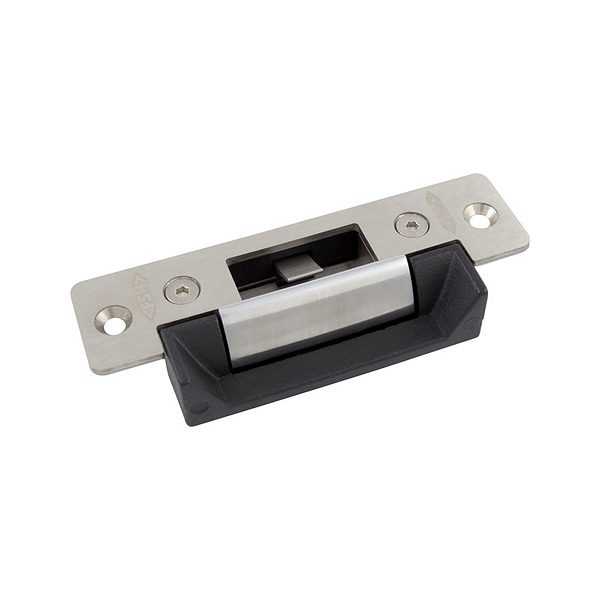

> >>Compact Electric Strike - Monitored
Compact Electric Strike - Monitored View larger

Compact Electric Strike - Monitored

FSHFES10M

New product

Compact Electric Strike - Monitored

More details

The FES10 Series electric strikes are designed for light commercial and residential applications. With a small ANSI footprint, the strikes accept either 12 or 24VDC and have been tested up to a 2-hour fire rated in accordance with AS 1530.4:2005 (contact Allegion for more details).

The strikes are easily Power to Lock (PTL) / Power to Open (PTO) field interchangeable by simply changing over the barbell mechanism. The device is pre drilled to cater for extension lips, comes with a 5 year warranty and has a holding strength of up to 1200kg.

The FES10M version has Door Status Sensor monitoring.

Features

  • Stainless steel faceplate and keeper
  • Barbell mechanism for simple change of locking function
  • Low power consumption
  • Compatible with door latch depth of up to 15mm
  • Superior holding strength of up to 1400kg
  • 12 or 24 VDC operation
  • Pre drilled for extension lips
  • Certifications 2 hour fire rated to A.S. and B.S. standards
  • Colour Silver/Black
  • Dimensions (H x W x D) 125 x 42 x 35mm
  • Holding Strength 1000kg
  • Voltage Dual Voltage 12VDC/200mA 24VDC/100mA
  • Warranty 5 Years
