> >>Service Installer Codepad for Solution 6000/144
Service Installer Codepad for Solution 6000/144 View larger

BOSCH

Service Installer Codepad for Solution 6000/144

BOSCP799B

New product

Service Installer Codepad for Solution 6000/144

More details

Balcatta: 0
Geebung: 0

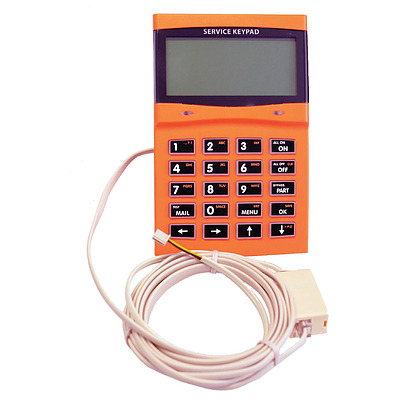

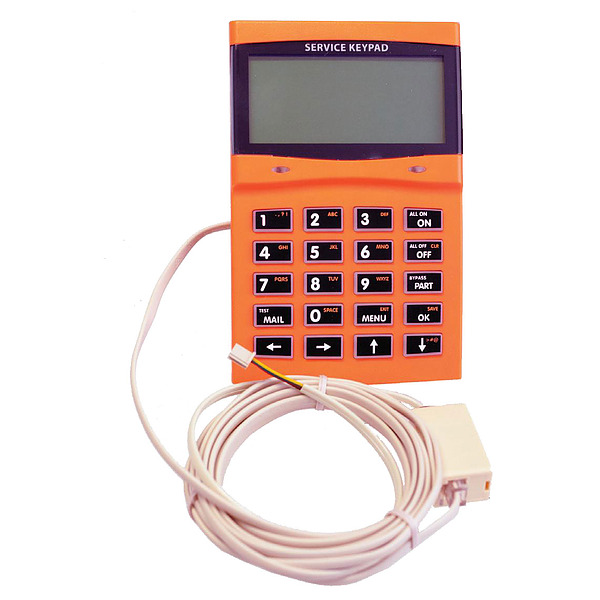

The CP799 Service keypad has been designed to assist the installer or service technician when working on Solution 6000 alarm panels. The keypad can be temporarily plugged onto any module on the system that has a service port header via it’s built in 1.5m lead. Once connected it allows the installer to easily log into programming mode, interrogate zone or output status, review the history log and perform other functions as if they were using the main keypad. This is particularly useful in large installations where a number modules are dispersed around the building or in separate buildings and the main system keypads are located some distance away.

Unlike other keypads, the service keypad does not need to be addressed which means there is no need to scan the LAN for the system to recognise it. Built-in security means that the system will only respond to the service keypad if the panel has been placed in service mode from one of the main keypads or if the panel box tamper input is unsealled. Service keypad operation will cease when service mode ends or the box tamper is sealed.

The CP799 keypad includes a built-in DF smart card reader allowing RFID cards and tokens to be easily enrolled directly at the keypad if required. Alpha text characters have also been included on the keypad buttons which will can help to speed up text entry at the keypad.

Features

  • Plug on connection to modules with service ports
  • No need to assign a keypad address
  • Alpha characters on keys to aid text programming
  • Allows programming at the panel during installation
  • Operates only when system is in service mode or if the box tamper is unsealed
