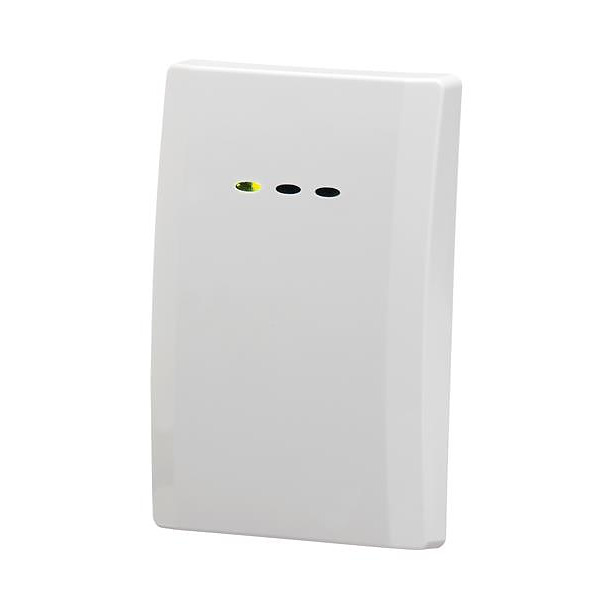

Internal Smartcard Reader - White

Product Code: BOSPR114B

Condition: New product

More details

Balcatta: 2

Geebung: 0

More info
Download
Accessories

The Internal LAN Proximity Readers feature the Bosch proprietary 40 bit transmission format and can be used to provide alarm and/or access control functionality when used on the Solution 144 control panel. Red, green and blue indicators are provided to show area and/or door lock status at all times. The built-in egress input and lock output can be used to simplify the wiring when controlling door access via the reader.

The Internal LAN Proximity Reader occupies a code pad position the panel configuration and connects via the RS485 encrypted panel LAN, which features antireplay and device anti-substitution technology. All user access and alarm control events are stored in the panel’s history log and can be reported if required. User credentials can easily be administered onsite using a display code pad or remotely using the SolutionLink upload/download software. The built-in sounder provides audible feedback for various system events including entry / exit warning and alarm conditions.

The reader’s built-in tamper switch will trigger when the cover is removed or if the unit is removed from the wall. Various options can be configured via panel programming including setting the volume of the builtin sounder, setting the indicator brightness, deactivating the tamper switch or egress input functions.

Features

40 bit transmission format – 125Khz, with up to 40mm read range
Lock Output and Egress Input to simplify wiring
Separate indicators show door and alarm status, with built-in sounder providing alarm warning
Built-in front and rear tamper protection
Anti replay and anti-substitution protection
