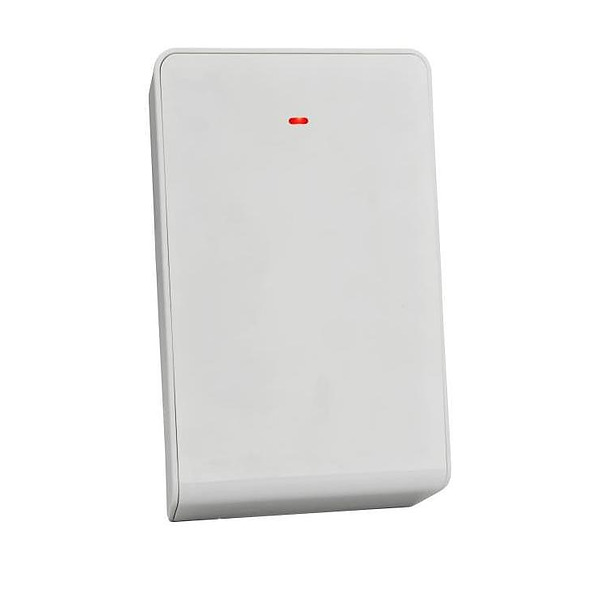

Radion Wireless Receiver for Solution 6000
BOSRFRC-STR2
New product
Radion Wireless Receiver for Solution 6000
The RFRC-STR2 is a wireless receiver that connects RADION
wireless peripherals such as the motion and specialty detectors, keyfobs, panic
buttons, door window contacts, repeaters, and more, to supported Bosch 6000 and
legacy control panels.
The receiver supports RF communication at
433.42 MHz This frequency features improved penetration, reflection, and
refraction of signal for superior range, and reliability. The receiver also
features dual antennas to achieve spatial and polar diversity to further improve
RF communication reliability. Enclosed within the receiver housing for higher
security, the receiver is equipped with tamper protection, and detects and
reports radio frequency interferences.
The receiver supports supervision
of wireless points (504), key fobs (1000), and repeaters (8) and can be easily
accessed and configured for a compatible control panel using the address switch
on the back of the receiver housing.
The receiver address switch
provides a single digit setting for the receiver’s address, allowing for ease of
installation.
The RFRC-STR2 is compatible with the Bosch 6000 Panel along with:
-
Solution 16i
-
Solution 16+
-
Solution 64
-
Solution Ultima Range
Features
- Dual internal antennas provide spatial and polar diversity for highly reliable RF signal reception
- Cover and wall tamper detection
- Multiple device and control panel supportive options as well as RF diagnostics ensure efficient and effective installation
- Supports RADION repeater to increase wireless system coverage and reliability
- External status LED
- Colour White
- Dimensions (H x W x D) 209.6 x 139.7 x 31.8 mm
- Frequency 433.42 MHz
- Operating Temperature -10C to +55C
- Voltage 12 VDC
- Warranty 3 Years
