The Bosch midspans enable remote power over an IP network connection for specific Bosch IP cameras. Rated for indoor installation only, the midspans can be installed indoors and wired to a camera installed outdoors.
Each midspan has a single port and is designed to carry data
and power over a standard CAT5e (or better) cable, delivered through all 4
pairs.

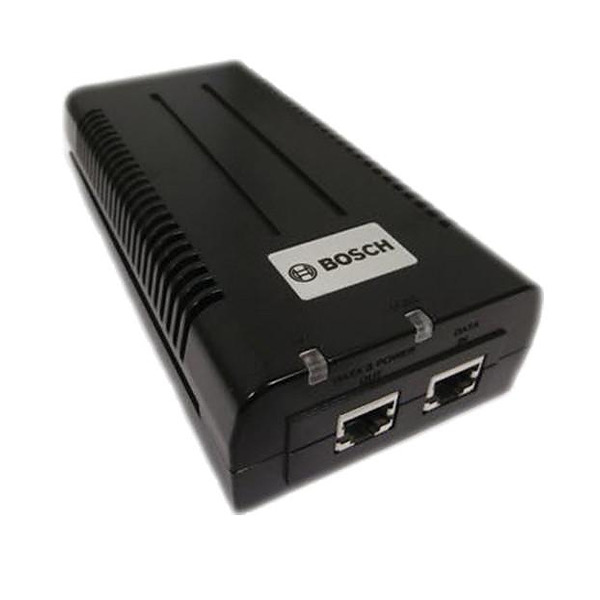

The 60 W midspan (NPD-6001A) enables remote High Power over
Ethernet (High PoE) for various Bosch IP/HD PTZ cameras. Generating a maximum of
60 W, it complies to both the IEEE 802.3af and the IEEE 802.3at standards, while
doubling the available power.
Features
-
Supports high-power PoE/PoH and complies to both the IEEE 802.3af and the IEEE 802.3at standards.
-
Mounts to a wall, shelf, bench, desktop, and to other units.
- Colour Black
- Dimensions (H x W x D) 43 x 87.9 x 166 mm
- Warranty 3 Years
- Weight 400 g
Data Sheet
