TAKEX HARDWIRED 90° PIR WITH DUAL ZONE WHITE 2~12M DETECTION AREA 1 x SPST CONFIGURABLE OUTPUT (DRY) PLASTIC W

Product Code: TAKMS-12TE

Supplier SKU: MS-12TE

Condition: New product

Balcatta: 0

Geebung: 0

More info
Specifications
Download

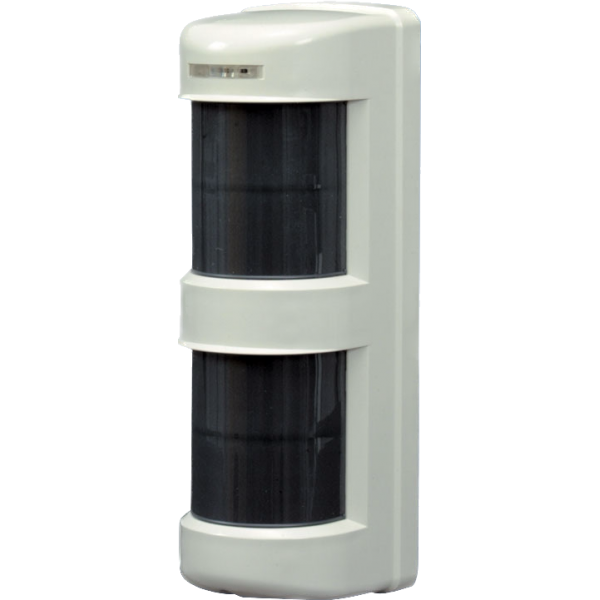

MS-12TE Dual Zone Outdoor PIR Sensor

The MS-12TE from TAKEX is a dual zone passive infrared sensor that excels in outdoor environments, particularly where precise detection is crucial. The sensor is equipped with a DUAL ZONE system that triggers an alarm only when both horizontal and downward detection zones are simultaneously activated, effectively reducing false alarms caused by small animals or other non-human intruders. This capability is enhanced by the sensor's variable detection angle, which can be adjusted up to 90 degrees, allowing for customized monitoring depending on the specific area requirements.

The MS-12TE's design incorporates a rain-proof housing, ensuring it remains effective under various weather conditions. It can be mounted on walls or poles, providing flexible installation options. The sensitivity of the sensor can be adjusted between 30% and 170%, enabling it to be finely tuned for different operational environments. This sensor is particularly suitable for perimeter, window, or wall detection and can be tailored further with area masking sheets.

Key Features

Dual Zone Detection: Minimizes false alarms by requiring simultaneous obstruction in both detection zones.
Variable Detection Angle: Allows up to 90 degrees of adjustment for focused monitoring.
Rain Proof Housing: Ensures functionality in outdoor settings.
Flexible Mounting Options: Can be installed on walls or poles.
Adjustable Sensitivity: Customizable to suit various environmental conditions.
