TAKEX HARDWIRED WIDE ANGLE PIR WHITE 50°x 15M DETECTION AREA 1 x SPDT OUTPUT FLASHING/ SOLID RED LED INDICATOR

Product Code: TAKPA-15WE

Supplier SKU: PA-15WE

Condition: New product

Balcatta: 0

Geebung: 0

More info
Specifications
Download

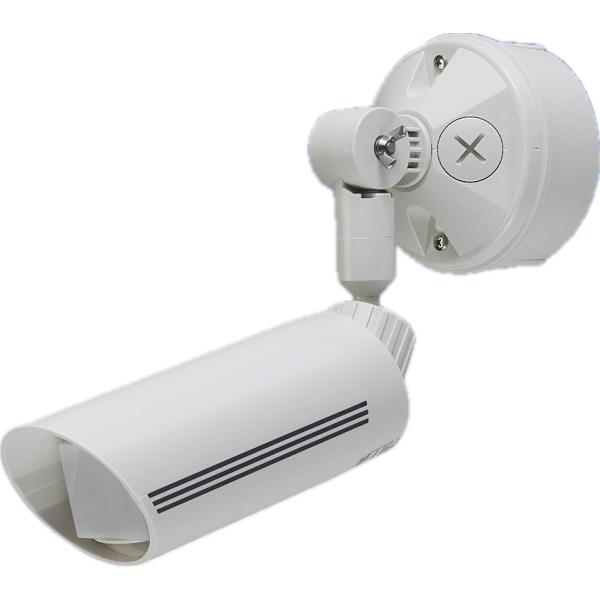

PA-15WE Wide Angle Passive Infrared Sensor

The PA-15WE from TAKEX is a versatile passive infrared sensor that offers wide coverage with a maximum range of 15 meters, ideal for monitoring large areas such as commercial facilities, parking lots, and gardens. It features a 180° detection range, allowing for comprehensive surveillance without the need for multiple units. The sensor’s innovative design includes an easy-to-install mounting base and a grip bolt for quick angle adjustment, making installation straightforward and flexible.

This model is equipped with a sensitivity adjustment feature, allowing it to adapt to different environmental conditions and minimize false alarms. The PA-15WE also includes features such as a dry contact relay output, which can be configured as either normally open or normally closed, adding to its versatility in integration with various types of security systems. The robust construction ensures durability and reliable performance in diverse weather conditions, underscored by its rain-proof design.

Key Features

Wide Angle Coverage: Offers up to 180° field of view with a 15-meter range.
Adjustable Mounting and Sensitivity: Easy installation with flexible angle adjustment and sensitivity settings.
Versatile Integration: Supports both N.O. and N.C. output configurations for diverse security system compatibility.
Durable Design: Constructed to be rain-proof, suitable for both indoor and outdoor use.
Ideal for Large Areas: Perfect for commercial spaces, parking lots, and expansive outdoor areas.
