TAKEX WIRELESS PE BEAM QUAD WITH QUAD BEAM BLACK 100M DETECTION AREA 1 x SPDT OUTPUT PLASTIC WALL MOUNT IP65 6

Product Code: TAKTXF-125DM

Supplier SKU: TXF-125DM

Condition: New product

Balcatta: 0

Geebung: 0

More info
Specifications
Download

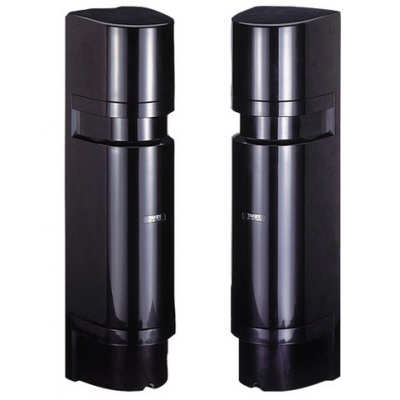

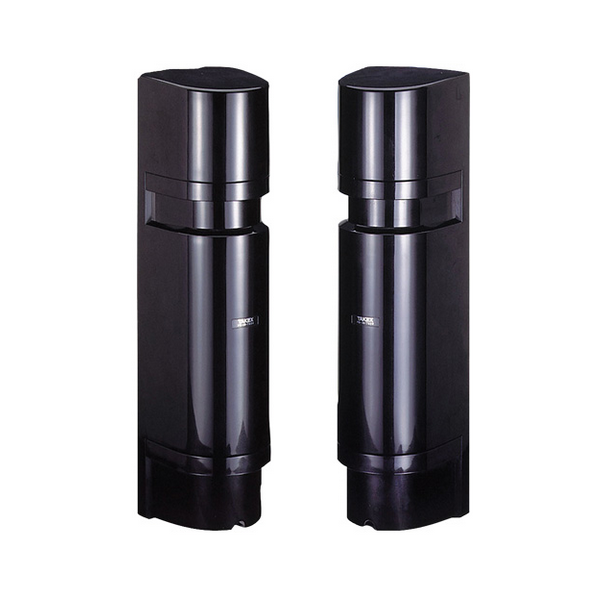

TXF-125DM Battery Operated Photoelectric Beam Sensor

The TXF-125DM is a sophisticated battery-operated photoelectric beam sensor designed for optimal outdoor security up to 100 meters (330 feet). This device is particularly advantageous for remote or temporary installation sites where wiring challenges prevail, as it requires no traditional power source or extensive civil engineering work. The sensor employs double modulation technology to enhance stability and reduce false activations caused by ambient light, making it exceptionally reliable under various environmental conditions.

This model also boasts an IP65 rated housing, ensuring it is protected against ingress from dust, water, and insects while allowing internal moisture to evaporate, preventing condensation issues. The TXF-125DM supports four selectable operation ranges—25, 50, 75, and 100 meters—and four-channel frequencies to prevent crosstalk when multiple units are employed. With a battery life of up to three years using 6 × LS 33600 batteries, it offers a cost-effective solution with minimal maintenance requirements. Additional features include wide beam pitch and precise horizontal and vertical adjustment capabilities to cater to complex installation environments.

Key Features

Long Range Coverage: Capable of securing distances up to 100 meters.
Double Modulation Technology: Ensures high reliability by minimizing false triggers due to ambient light.
Battery Operated: Provides up to three years of operation without needing a power source.
IP65 Rated Housing: Offers robust protection against harsh environmental elements.
Flexible Installation Options: Features adjustable beam angles and multiple frequency channels to accommodate various setups.
