> >>TAKEX HARDWIRED CURTAIN PIR WHITE 16.5M DETECTION AREA 1 x SPST CONFIGURABLE OUTPUT (DRY) PLASTIC WALL MOUNT U
TAKEX HARDWIRED CURTAIN PIR WHITE 16.5M DETECTION AREA 1 x SPST CONFIGURABLE OUTPUT (DRY) PLASTIC WALL MOUNT UPTO 2.5M M View larger

TAKEX

TAKEX HARDWIRED CURTAIN PIR WHITE 16.5M DETECTION AREA 1 x SPST CONFIGURABLE OUTPUT (DRY) PLASTIC WALL MOUNT U

TAKPA-460EA

PA-460EA

New product

Balcatta: 0
Geebung: 0

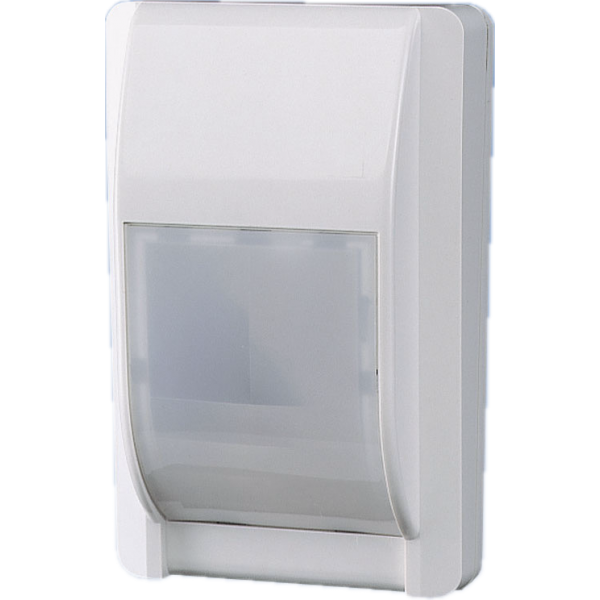

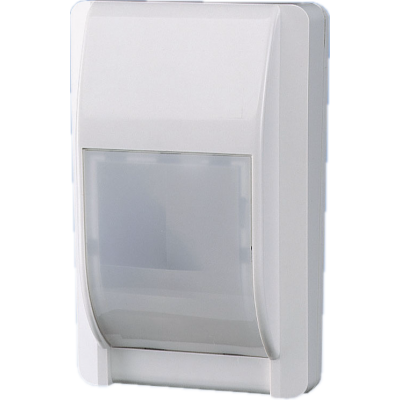

PA-460E Vertical Curtain Passive Infrared Sensor

The PA-460E is a specialized passive infrared sensor designed for vertical curtain detection, making it ideal for securing narrow, elongated areas such as the sides of buildings, fences, or long corridors. This model offers an impressive detection range of up to 55 feet (16.5 meters) with a focused coverage pattern facilitated by 6 pairs of sensitive zones. It ensures precise monitoring in vertical applications, where traditional wide-angle sensors might fall short.

This sensor operates on a supply voltage of 10 to 18V DC and is characterized by its low current consumption of only 25mA, enhancing its efficiency and suitability for extended operational periods without imposing high energy demands. The PA-460E includes critical features such as an alarm output with dry contact relay (normally open/normally closed selectable) which provides flexibility in connecting to various alarm systems. The reset time for this contact is approximately 2 seconds, and it can handle a load of up to 24V, 0.25A with a protective resistance of 3.3Ω.

Key Features

  • Vertical Curtain Coverage: Extends up to 55 feet, ideal for monitoring narrow vertical spaces.
  • Sensitive Detection: Equipped with 6 pairs of sensor zones for enhanced detection accuracy.
  • Low Energy Consumption: Operates on a minimal current of 25mA, ensuring efficiency.
  • Flexible Alarm Outputs: Supports both normally open and normally closed configurations.
  • Robust Design: Features tamper output and environmental resistance suitable for indoor use.
  • COLOR WHITE
  • PRODUCT TYPE PIR CURTAIN
