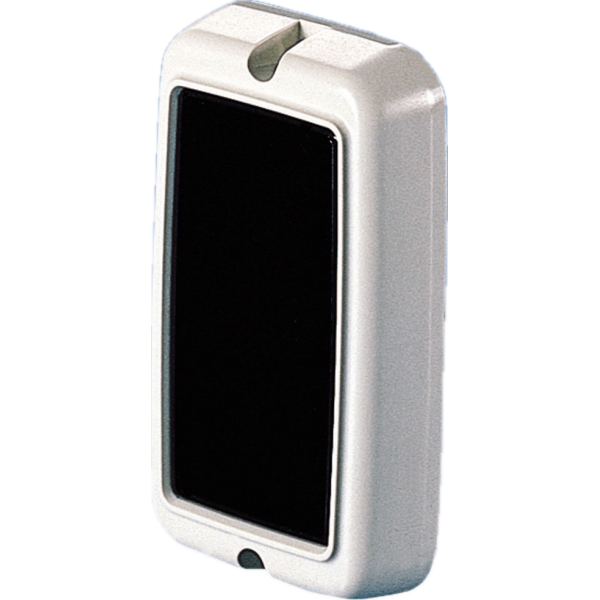

PR-1B Photoelectric Beam Sensor

The PR-1B is a compact and efficient photoelectric beam sensor that utilizes near-infrared technology for the direct reflective detection of motionless objects. It is particularly designed for applications requiring precise detection within a short range, having a maximum protection distance of 3.3 feet (1 meter). This sensor is ideally suited for indoor environments where space constraints exist or where discreet monitoring is necessary, such as in ATMs, vending machines, and other similar apparatuses.

This model is highly adaptable, supporting a supply voltage range from 10.5V to 22V DC, and consumes a low current of 60mA or less at 12V DC, making it energy efficient. The PR-1B is built to operate reliably within a wide ambient temperature range of -4°F to +122°F (-20°C to +50°C), ensuring functionality in various indoor conditions. The sensor's output is a dry contact relay capable of handling up to 30V AC/DC, with a contact activation that includes a detection time and an off delay of approximately 0.5 seconds, which helps prevent false triggering.

Key Features

  • Near-Infrared Detection: Utilizes direct reflective detection technology for high accuracy.
  • Compact Design: Ideal for indoor use where space is at a premium.
  • Energy Efficient: Operates with low current consumption and supports a wide voltage range.
  • Wide Temperature Range: Functions effectively across diverse environmental conditions.
  • Reliable Output: Features a dry contact relay with precise activation timing.
  • COLOR WHITE
  • PRODUCT TYPE PE BEAM SENSOR
