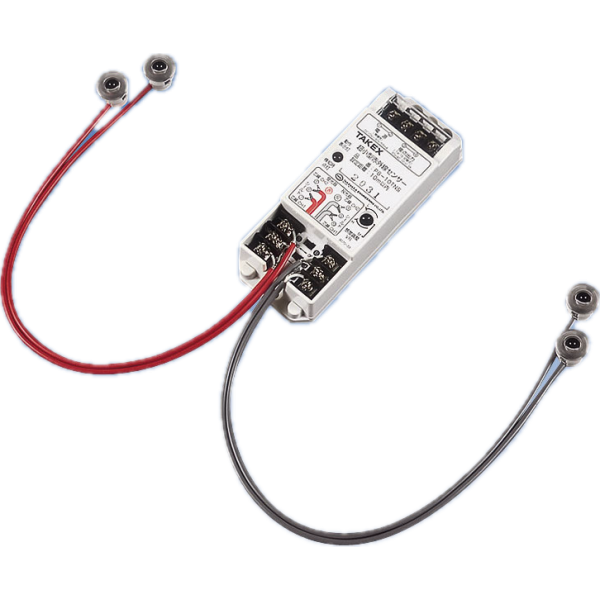

PB-10TNS Miniaturized Photoelectric Beam Sensor

The PB-10TNS is a highly compact and efficient photoelectric beam sensor that excels in discreet security applications, making it ideal for protecting small and confined spaces such as CD/ATM machines, motor-driven shutters, windows, or narrow alleys. This twin beam sensor offers a protection distance of up to 33 feet (10 meters) and features a miniaturized control box that does not compromise installation space, measuring just 1.77 inches in width and 4.72 inches in height. Its ability to integrate seamlessly into various settings without being conspicuous makes it a preferred choice for areas where aesthetics and functionality are crucial.

For installation, the PB-10TNS simplifies the process with a preliminary hole for the sensor head, allowing for easy push-in mounting. Both the transmitter and receiver cords can be cut to length, eliminating the need to bundle excess cord and ensuring a neat setup. The built-in sensitivity control allows adjustments to the optimal level required by the installation site, making it adaptable to different environmental conditions. This sensor supports both N.C. (normally closed) and N.O. (normally open) output selections, enhancing its compatibility with various types of security systems.

Key Features

  • Compact Design: Perfect for installations where space is limited.
  • Adjustable Sensitivity: Customizable to meet specific site requirements.
  • Easy Installation: Features a straightforward push-in mounting mechanism.
  • Versatile Wiring: Transmitter and receiver cords can be custom-cut to fit the installation area.
  • Dual Output Selection: Supports both N.C. and N.O. configurations for greater system integration.
  • COLOR WHITE
  • PRODUCT TYPE PE BEAM SENSOR
