> >>TAKEX HARDWIRED PE BEAM BLACK 100M DETECTION AREA 1 x SPST CONFIGURABLE OUTPUT (DRY) PLASTIC TA TOWER MOUNT 12
TAKEX HARDWIRED PE BEAM BLACK 100M DETECTION AREA 1 x SPST CONFIGURABLE OUTPUT (DRY) PLASTIC TA TOWER MOUNT 12-30VDC View larger

TAKEX

TAKEX HARDWIRED PE BEAM BLACK 100M DETECTION AREA 1 x SPST CONFIGURABLE OUTPUT (DRY) PLASTIC TA TOWER MOUNT 12

TAKPB-100HFA-KH

PB-100HFA-KH

New product

Balcatta: 0
Geebung: 0

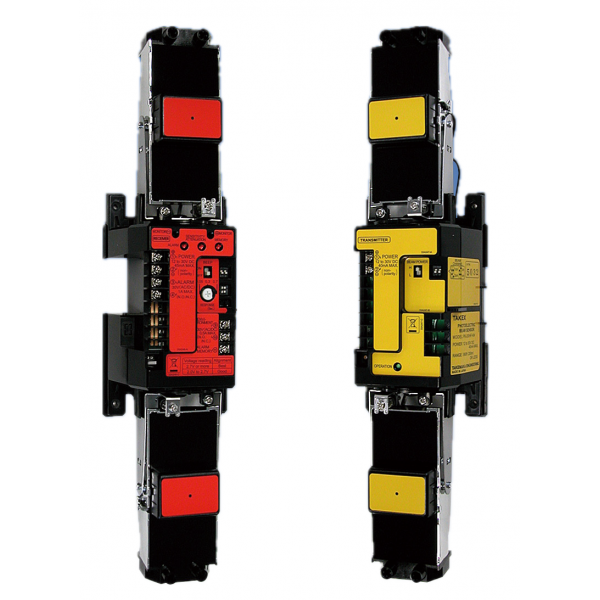

PB100HF-KH Photoelectric Beam Sensor

The PB100HF-KH is a high-performance photoelectric beam sensor designed for long-range perimeter security applications, capable of detecting intrusions within a 100-meter range. Ideal for protecting extensive outdoor areas such as industrial sites, warehouse perimeters, and private properties, this sensor ensures reliable operation with its near-infrared beam interruption system and double modulation pulsed beams by LED. It supports a maximum arrival distance of 1000 meters, which helps in maintaining high performance even under challenging environmental conditions.

This sensor model is particularly noted for its versatility in power supply options, accepting anything from 12V to 30VDC, making it suitable for various installation scenarios. It features a low current consumption of 70mA at protection, ensuring energy efficiency. Additionally, the PB100HF-KH includes environmental outputs for fog warning and has a robust relay output system capable of handling up to 30V AC/DC at 1A. Its built-in sensitivity attenuation and beam alignment capabilities facilitate precise setup and easy maintenance, enhancing its usability across diverse operational needs.

Key Features

  • Long Detection Range: Effective up to 100 meters for extensive perimeter coverage.
  • Low Power Consumption: Operates efficiently with 70mA current draw at protection.
  • Environmental Adaptability: Includes outputs for fog warnings and is capable of functioning in diverse weather conditions.
  • Versatile Power Options: Compatible with 12 to 30VDC, accommodating various electrical setups.
  • Robust Output Capabilities: Features dry contact relay output for reliable performance.
  • COLOR BLACK
  • PRODUCT TYPE PE BEAM SENSOR
