TAKEX HARDWIRED AUTO DR SENSOR SILVER 1.5~3M DETECTION AREA 1 x N/O OUTPUT (DRY) PLASTIC WALL MOUNT 3M MAX MOU

Product Code: TAKDA-303SILVER

Supplier SKU: DA-303ESILVER

Condition: New product

Balcatta: 0

Geebung: 0

More info
Specifications
Download

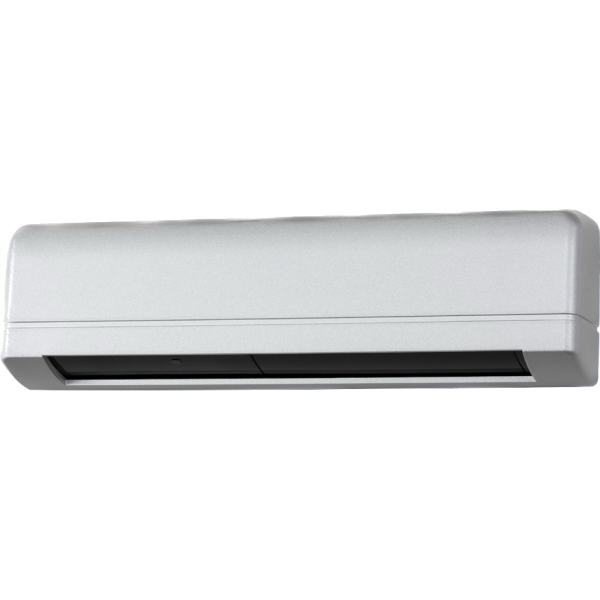

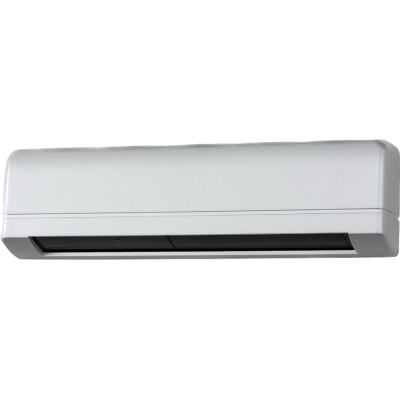

DA-303SILVER Active Infrared Motion & Presence Sensor

The DA-303SILVER is an advanced active infrared sensor designed to enhance the functionality of automatic door systems. It utilizes a high-density detection pattern with 32 zones across 4 rows, ensuring precise motion and presence detection up to a mounting height of 3 meters. This sensor is particularly suited for installations where high traffic and quick response are essential, such as in commercial buildings, hospitals, and large retail environments. Its slim design with a body thickness of just 28.5mm allows for unobtrusive installation, minimizing aesthetic impact while maximizing detection efficiency.

The sensor features several adjustable settings to tailor its operation to specific site requirements. These include a presence timer with settings for 2 seconds, 10 seconds, 60 seconds, or infinity, which helps in managing door operation times based on traffic flow. Additionally, the DA-303SILVER is equipped with environmental level adjustments, which ensure stable detection under varying weather conditions, such as rain or snow, and in scenarios prone to flying insects. Its robust construction and customizable frequency settings also allow up to four sensors to be installed in proximity without risk of crosstalk, making it ideal for locations with multiple entry points.

Key Features

High-Density Detection Pattern: 32 zones across 4 rows ensure comprehensive coverage.
Slim Design: Ideal for locations with aesthetic or space constraints.
Adjustable Presence Timer: Options include 2 sec, 10 sec, 60 sec, and infinity for flexible door management.
Environmental Adaptability: Includes settings for stable operation in diverse conditions.
Crosstalk Prevention: Four selectable frequencies allow multiple sensors to operate in close proximity without interference.
