> >>TAKEX WIRELESS PE BEAM WITH QUAD BEAM BLACK 100M DETECTION AREA 1 x SPDT OUTPUT PLASTIC WALL/ POLE MOUNT IP65
TAKEX WIRELESS PE BEAM WITH QUAD BEAM BLACK 100M DETECTION AREA 1 x SPDT OUTPUT PLASTIC WALL/ POLE MOUNT IP65 2xLS 33600 View larger

TAKEX

TAKEX WIRELESS PE BEAM WITH QUAD BEAM BLACK 100M DETECTION AREA 1 x SPDT OUTPUT PLASTIC WALL/ POLE MOUNT IP65

TAKTXF-125

TXF-125E

New product

Balcatta: 0
Geebung: 0

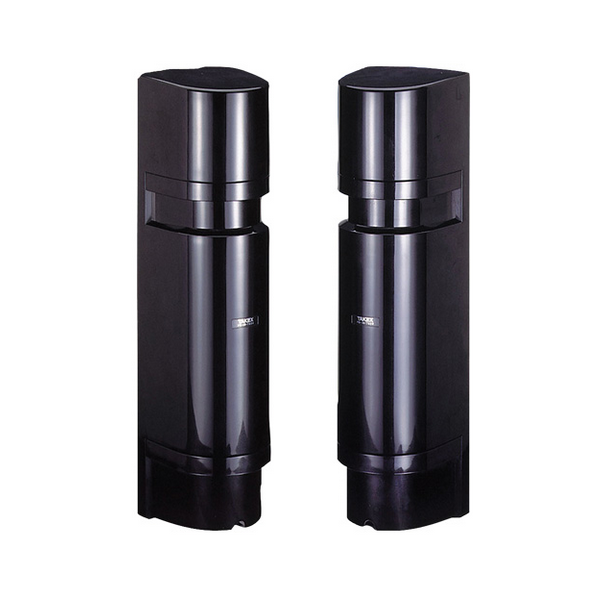

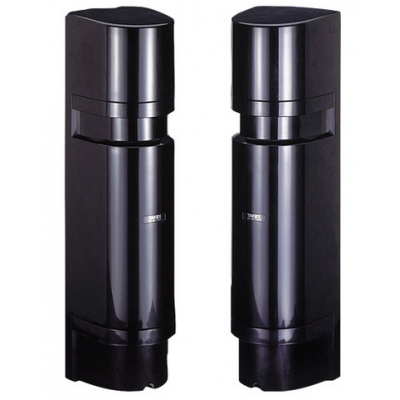

TXF-125E Battery-Operated Photoelectric Beam Sensor

The TXF-125E represents the forefront of battery-operated photoelectric beam sensor technology, specifically designed for security applications where wiring constraints exist. This model employs a near-infrared pulsed beam interruption system capable of detecting disturbances over outdoor distances up to 330 feet (100 meters), making it suitable for perimeters of large properties such as industrial sites, commercial parks, and residential areas. The sensor features a single modulation pulsed beam by LED, ensuring reliable detection even in diverse environmental conditions.

This sensor's capability is supported by an advanced detection system that allows for four distance settings (82/25m, 165/50m, 247/75m, 330/100m), enabling customization based on specific site requirements. Its efficient power management system ensures a battery life of approximately five years, assuming average operation conditions, making it an economically viable option for long-term deployment. Additionally, the TXF-125E is equipped with various outputs for alarm, tamper, and low battery indications, enhancing its functionality and integration into existing security systems.

Key Features

  • Long Detection Range: Capable of covering distances up to 330 feet.
  • Adjustable Protection Distances: Four selectable ranges to match perimeter needs.
  • Energy Efficient: Operates on a 3.6VDC battery with an approximate life of five years.
  • Robust Outputs: Includes alarms for detection, tamper evidence, and low battery.
  • Environmental Durability: Designed to withstand outdoor conditions with an IP65 rating.
  • COLOR BLACK
  • PRODUCT TYPE PE BEAM SENSOR
