TAKEX HARDWIRED PE BEAM BLACK 1~15M DETECTION AREA 1 x SPDT OUTPUT PLASTIC WALL/ POLE MOUNT 10.5-30VDC SENSOR

Product Code: TAKPR-11B

Supplier SKU: PR-11BE

Condition: New product

Balcatta: 0

Geebung: 0

More info
Specifications
Download

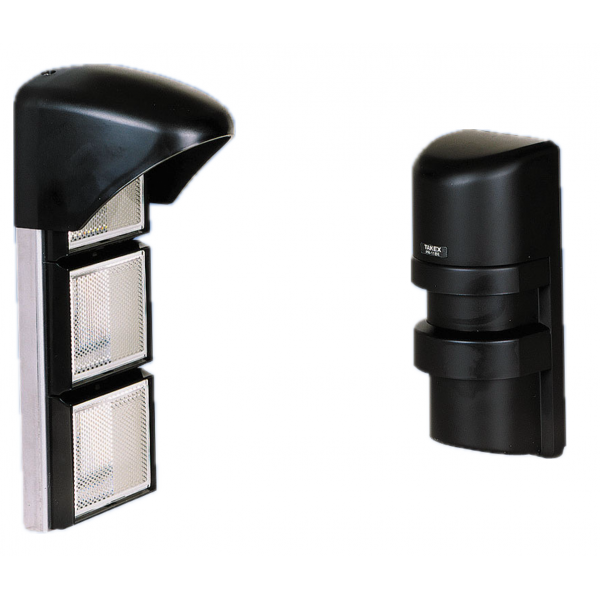

PR-11BE Photoelectric Beam Sensor

The PR-11BE is a versatile photoelectric beam sensor developed by TAKEX, suitable for a wide range of applications from residential to commercial security systems. This sensor is the first of its kind to be optimized for outdoor use, featuring a reflector-based design that simplifies installation by requiring wiring only at the sensor unit, making it ideal for locations where wiring both ends is challenging. The sensor provides effective coverage for outdoor distances up to 36 feet (11 meters) and indoor up to 49 feet (15 meters), with two types of attenuation sheets included for fine-tuning performance under different environmental conditions.

Designed to withstand high illumination fluctuations up to 50,000 lux, the PR-11BE includes a special external light compensation circuit and filter to cut visible rays effectively, ensuring reliable operation under exposure to sunlight, automobile headlights, and other strong light sources. The sensor's rotary optical system allows horizontal adjustments up to 90 degrees and vertical adjustments up to 10 degrees, providing flexibility in targeting specific zones. Additionally, response time and sensitivity can be adjusted via onboard controls to match security requirements precisely.

Key Features

Reflector Beam Design: Simplifies installation and is ideal for outdoor use.
High Illumination Tolerance: Effective up to 50,000 lux with specialized light filtering.
Adjustable Optical System: Offers horizontal and vertical adjustments for precise area coverage.
Dual Indoor/Outdoor Capability: Comes with specific attenuation sheets for tailored functionality.
Easy Installation and Operation: Features simplified wiring and adjustable settings for optimal operation.
