> >>TAKEX PR SERIES HARDWIRED PE BEAM WITH MIRROR LENS WHITE 5M DETECTION AREA 1 x SPDT OUTPUT PLASTIC WALL MOUNT
TAKEX PR SERIES HARDWIRED PE BEAM WITH MIRROR LENS WHITE 5M DETECTION AREA 1 x SPDT OUTPUT PLASTIC WALL MOUNT 10.5-26VDC View larger

TAKEX

TAKEX PR SERIES HARDWIRED PE BEAM WITH MIRROR LENS WHITE 5M DETECTION AREA 1 x SPDT OUTPUT PLASTIC WALL MOUNT

TAKPR-5B

PR-5B

New product

Balcatta: 0
Geebung: 0

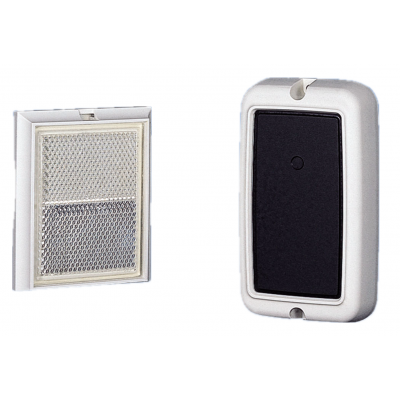

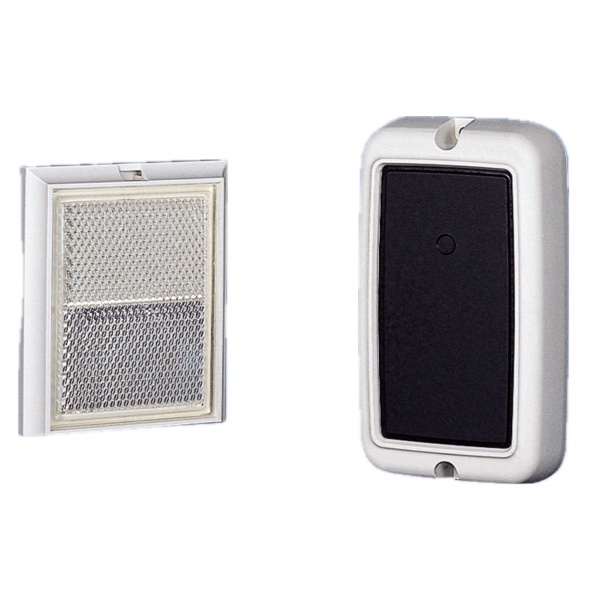

PR-5B Photoelectric Beam Sensor

The PR-5B photoelectric beam sensor from TAKEX offers a compact and effective solution for indoor security applications where space is at a premium and discreet installation is required. The sensor is housed in a slim, pocket-calculator-sized unit with a white enclosure that blends seamlessly into most environments. It features a reflector beam system for short-distance protection up to 5 meters (16.5 feet), making it ideal for monitoring entrances, exits, and passages where wiring to both ends of the sensor might be challenging.

Designed with an enhanced immunity to external light, the PR-5B incorporates a special filter that effectively eliminates interference from visible light sources. This ensures reliable operation even in areas exposed to strong ambient light. The installation of the sensor is straightforward, thanks to its forgiving alignment system, which allows up to a 30-degree variance in beam reception and reflection. Additionally, the sensor supports a wide range of supply voltages from 10.5V to 26V DC and comes with optional flush mount plates and "L" brackets for versatile mounting options.

Key Features

  • Compact Design: Ideal for unobtrusive installation in indoor settings.
  • Excellent Light Immunity: Features a special filter to mitigate the effects of external light sources.
  • Easy Installation: Allows flexible alignment with a 30-degree angle variance for hassle-free setup.
  • Short Range Protection: Suitable for distances up to 5 meters, perfect for small to medium indoor spaces.
  • Versatile Mounting Options: Supports both flush mounting and bracket mounting for varied installation needs.
  • COLOR WHITE
  • PRODUCT TYPE PE BEAM SENSOR
