TAKEX HARDWIRED PE BEAM WITH QUAD BEAM BLACK 50M DETECTION AREA 1 x SPST CONFIGURABLE OUTPUT (DRY) PLASTIC WAL

Product Code: TAKPB-IN-50HFA

Supplier SKU: PB-IN50HFA

Condition: New product

Balcatta: 0

Geebung: 0

More info
Specifications
Download

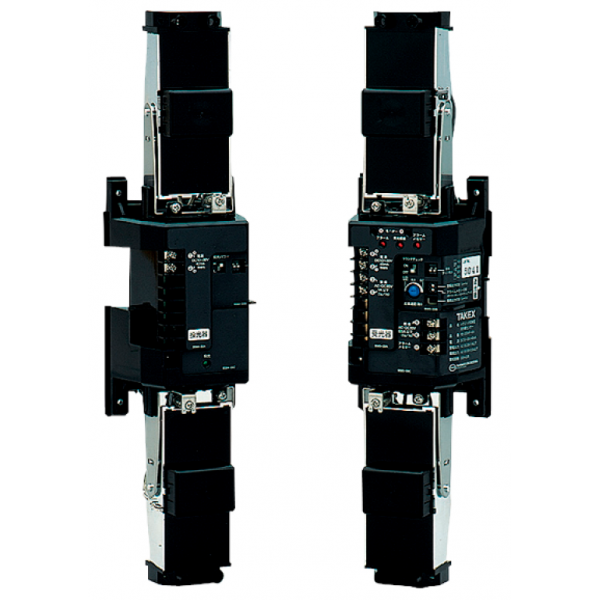

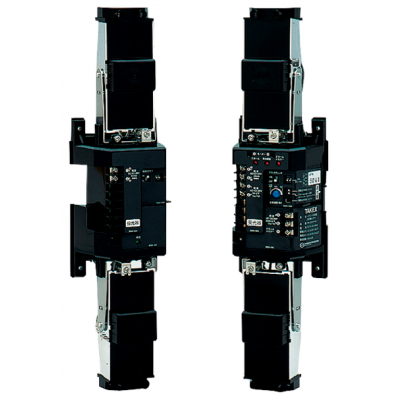

PB-IN-50HFA Intelligent Quad Photoelectric Beam Sensor

The PB-IN-50HFA, part of TAKEX's Intelligent Quad Series, is a robust photoelectric beam sensor designed for extensive outdoor protection. It offers an impressive protection distance of up to 165 feet (50 meters), making it ideal for securing large outdoor areas. This model uses four synchronized high-power infrared beams that work in unison to minimize false alarms caused by small animals and environmental factors like falling leaves. The sensor's active infrared transmission is notably powerful, with a maximum arrival distance that is ten times greater than the specified protection distance, ensuring effective operation over long ranges.

Equipped with a variety of selectable features to enhance functionality and flexibility, the PB-IN-50HFA includes four frequency options to prevent cross-talk and two levels of beam transmission strength to suit different protection distances. Installation is simplified with an audible alignment signal, which reaches its peak when beam alignment is optimal. Additional features such as auto-gain lock and programmed AGC (Automatic Gain Control) adjust sensitivity in adverse weather conditions, maintaining high performance through fog, rain, frost, or snow. The model also incorporates a protective hood to guard against frost and dew, ensuring continuous operation under all environmental conditions.

Key Features

Quad Synchronized Beams: Reduces false alarms and enhances detection stability.
High Power Infrared Transmission: Ensures long-distance coverage and reliable operation.
Selectable Frequencies and Beam Strengths: Offers customization to prevent interference and match specific site requirements.
Easy Beam Alignment: Features an audible alignment tone and sensitivity attenuation LED for precise setup.
Environmental Protection: Built-in module sends a trouble signal if beam reception levels fall below acceptable standards, and the unit is equipped with a protective hood for operation in all weather conditions.
RoHS Compliant: Environmentally friendly, free from harmful substances like lead and mercury.
