> >>TAKEX HARDWIRED PIR WITH WIDE ANGLE/ CURTAIN/ LONG RANGE SELECTABLE WHITE 20M DETECTION AREA 1 x SPST CONFIGUR
TAKEX HARDWIRED PIR WITH WIDE ANGLE/ CURTAIN/ LONG RANGE SELECTABLE WHITE 20M DETECTION AREA 1 x SPST CONFIGURABLE OUTPU View larger

TAKEX

TAKEX HARDWIRED PIR WITH WIDE ANGLE/ CURTAIN/ LONG RANGE SELECTABLE WHITE 20M DETECTION AREA 1 x SPST CONFIGUR

TAKMS-100

MS-100

New product

Balcatta: 0
Geebung: 0

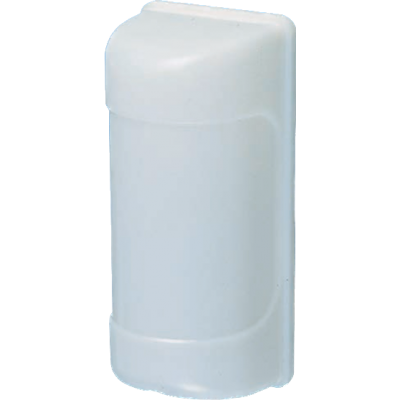

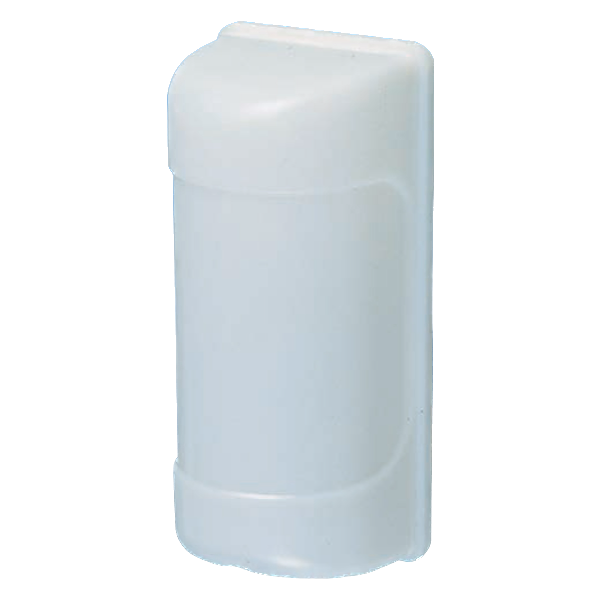

MS-100E Outdoor/Indoor Passive Infrared Sensor

The MS-100E from TAKEX is a state-of-the-art passive infrared sensor designed for both indoor and outdoor use, providing reliable intrusion detection through its innovative variable multi-area system. This system allows for the selection of four different detection patterns, making it adaptable to a variety of environmental conditions and installation requirements. The sensor operates effectively within a voltage range of 10.5VDC to 28VDC and is designed to be weather-proof, ensuring durability and consistent performance under various weather conditions.

Ideal for activating illuminators or surveillance cameras, the MS-100E enhances security systems by allowing for precise area monitoring. It features a range of up to 33 feet in wide angle and curtain configurations, and up to 66 feet in long-range detection settings. The sensor's robust design includes tamper signals and a rain-proof housing, suitable for both wall and pole mounting, making it a versatile choice for a wide range of security applications.

Key Features

  • Variable Detection Patterns: Offers four selectable patterns for customized coverage.
  • Weather-Proof Design: Ensures reliable operation in outdoor and semi-outdoor environments.
  • Flexible Installation Options: Can be mounted on poles, walls, or ceilings, accommodating different heights and locations.
  • Energy Efficient: Operates within a low power consumption range, enhancing battery life and reducing maintenance.
  • Advanced Output Features: Includes dry contact relay outputs with selectable N.C./N.O. configurations for integration with various devices.
  • COLOR WHITE
  • PRODUCT TYPE PIR
