> >>TAKEX HARDWIRED PE BEAM WITH TWIN BEAM BLACK INDOOR 80M/ OUTDOOR 40M DETECTION AREA 1 x SPDT OUTPUT PLASTIC WA

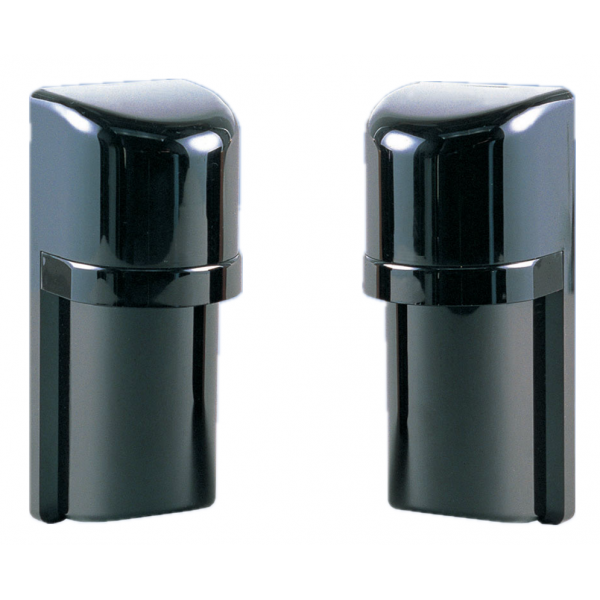

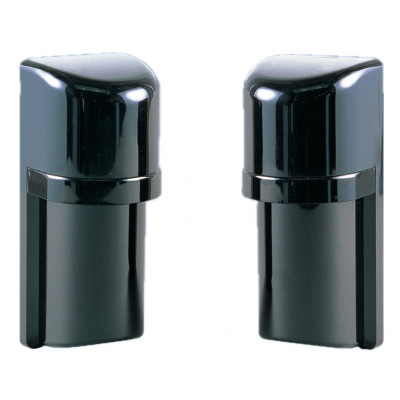

TAKEX HARDWIRED PE BEAM WITH TWIN BEAM BLACK INDOOR 80M/ OUTDOOR 40M DETECTION AREA 1 x SPDT OUTPUT PLASTIC WALL/ POLE M View larger

TAKEX

TAKEX HARDWIRED PE BEAM WITH TWIN BEAM BLACK INDOOR 80M/ OUTDOOR 40M DETECTION AREA 1 x SPDT OUTPUT PLASTIC WA

TAKPB-40TE

PB-40TE

New product

Balcatta: 0
Geebung: 0

PB-40TE Photoelectric Beam Sensor

The PB-40TE, part of the Intelligent Twin Series from TAKEX, is designed for high-security applications both indoors and outdoors. This model boasts an outdoor operational range of 135 feet (40 meters) and an indoor range of 270 feet (80 meters), making it suitable for large premises. The PB-40TE features synchronized twin beams which help reduce false alarms caused by small animals and environmental debris, enhancing its reliability even in adverse weather conditions.

This sensor incorporates a rotary optical system that allows both the transmitter and receiver to rotate up to 180 degrees, enabling side aiming and making it difficult for intruders to detect the beam direction. The device is equipped with a special filter that provides exceptional resistance to interference from various light sources, including sunlight and car headlights. Additional robust features include insect protection and frost/dew resistance, ensuring uninterrupted operation in all climates.

Key Features

  • Selectable Frequencies: Includes four selectable frequencies to prevent crosstalk in high-security installations.
  • High Environmental Tolerance: Features a compensation circuit and special filter to handle up to 50,000 lux of light fluctuations.
  • Easy Beam Alignment: Equipped with a viewfinder and monitor jack for easy setup and maintenance.
  • Insect and Weather Protection: Comes with a sealed optical system and a hood for frost and dew protection.
  • Versatile Installation: Suitable for various mounting options and environments, enhancing flexibility in security system design.
  • COLOR BLACK
  • PRODUCT TYPE PE BEAM SENSOR
