Wall Mount Slimline Vertical Rack - 2RU

GLOWMV-5106GY

New product

Wall Mount Slimline Vertical Rack - 2RU

More details

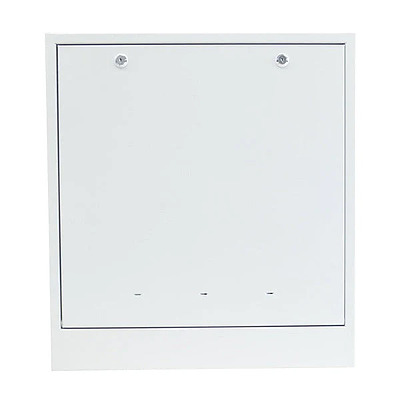

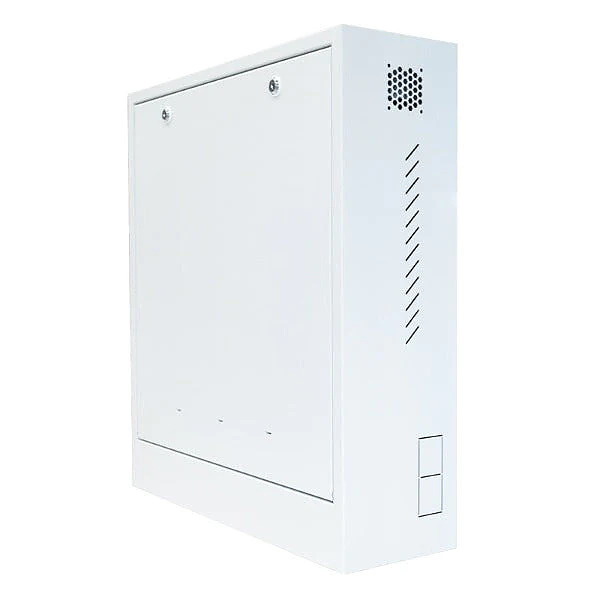

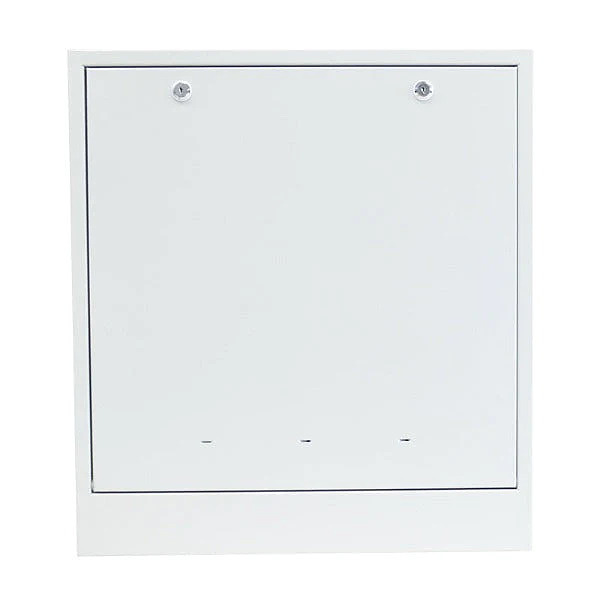

The Global WMV-5106GY is a 2U vertical rack enclosure designed to be wall mounted.

Perfect for CCTV installations with  limited space environments. The low profile of the cabinet allows your equipment to be mounted vertically in anywhere from comms rooms to retail stores, classrooms and offices.

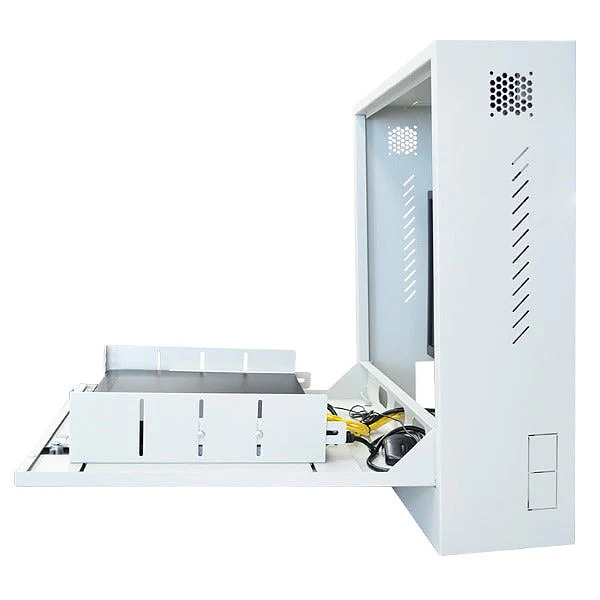

The vertical rackmount shelf has a capacity of up to 2U height, up to 480mm width & 465mm depth, with extra space to mount up to a 24” LCD monitor. * Ensure monitor has vertical / downwards facing input ports & power connectors. *

With a welded frame and locking front panel, the cabinet comes with  a PDU mounting space at the top of the cabinet

The cabinet has cable management knockouts from both cabinet sides along with ventilation slots to ensure good airflow.

The cabinet also has an option for 2 x 50mm cooling fans to be installed.

Features

  • Compact design
  • Key lockable
  • Cable management knockouts from all cabinet sides
  • Superior ventilation with optional 2 x 50mm cooling fans

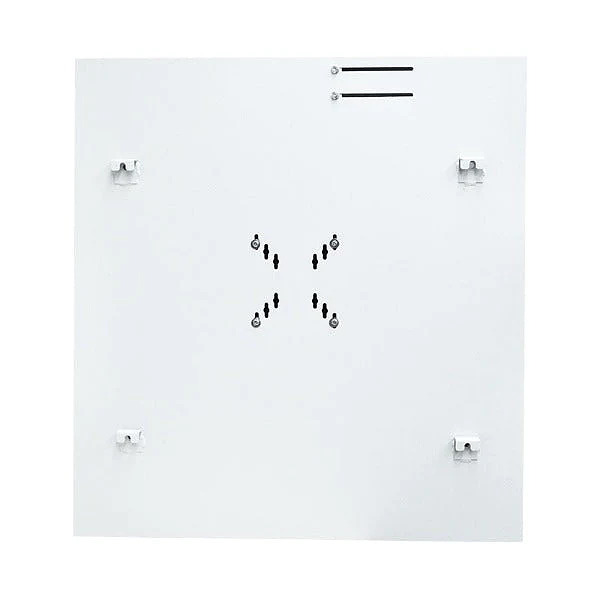

  • Fits up to 24” monitor, with 50/75/100 VESA mounts
  • Power board mountings
  • 30kg cabinet load bearing capacity (10kg vertical shelf)
  • Cage nuts, bolts and washers included





  • Certifications CE & RoHS
  • Colour Light Grey
  • Dimensions (H x W x D) 635 x 580 x 180mm
  • IP Rating IP20
  • Material Metal
  • Maximum Load Capacity 30Kg with 10Kg on shelf
  • Vesa (W x H) 50 x 50 to 100 x 100
  • Warranty 2 Years
