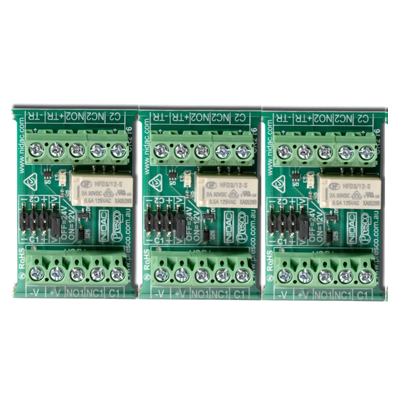

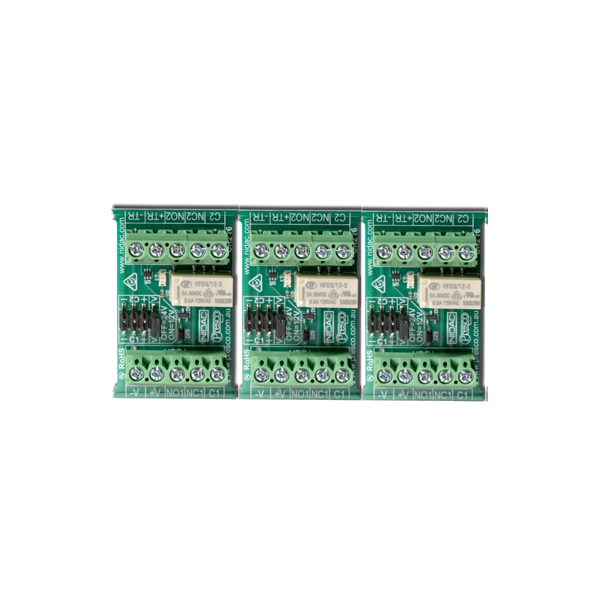

NR-CR2/3 Triple Control Relay Module

The NR-CR2/3 is a triple relay module built using three CR2 2-pole double throw control relays joined together on a single strip. Each relay operates on 12V or 24V DC and is rated at 2A for low voltage applications. The compact design includes LED indicators, low 1.2 mA trigger current, in-built pull-up resistors, and jumper-selectable options for customizing contact configuration and voltage operation. Ideal for dialler interfaces, electric door strikes, strobe lamps and more, the joined triple configuration streamlines installation while offering the same reliable performance as individual modules.

Key Features

  • Three CR2 relays integrated into one 150mm wide strip for convenient multi-relay use.
  • Each relay supports 2 pole changeover contacts rated at 2A 30V DC max.
  • Low 1.2 mA input current and LED indicators for trigger monitoring.
  • Customizable contact voltage with +VE or -VE jumper links.
  • Ideal for SIU interfaces, voltage level shifting, and access control triggers.
  • PRODUCT TYPE RELAY BOARD
