IP-COM 5GHz OMNI DIRECTIONAL BASE STN ANTENNA 2x RPSMA CONNECTORS 5100-5850MHz UPTO 1KM POLE MTD WHT 7DIAx870H

Product Code: ICMANT12-5G360

Condition: New product

Balcatta: 0

Geebung: 0

More info
Specifications
Download

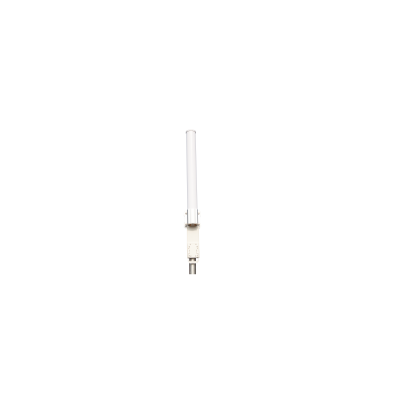

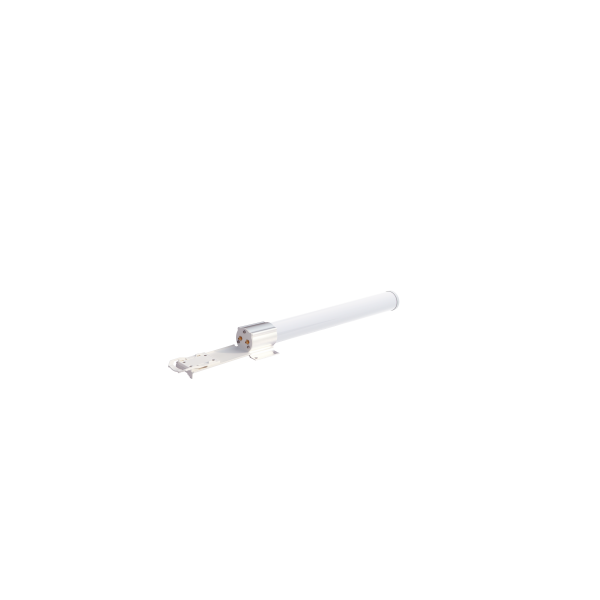

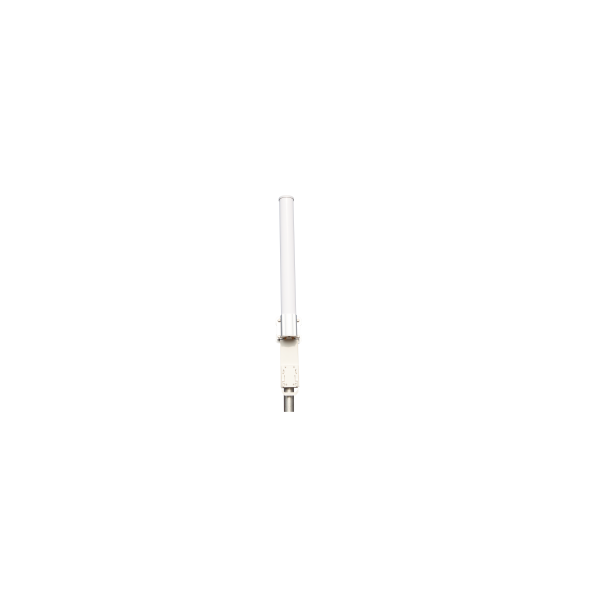

ICMANT12-5G360 5GHz 12dBi Dual Polarity Omni Antenna

The ICMANT12-5G360 is a high-performance 5GHz omni-directional antenna designed for Point-to-MultiPoint (PtMP) wireless applications, including private ISP connectivity and CCTV surveillance. With a 12dBi gain and dual-polarized design, it provides 360° coverage, ensuring stable and reliable wireless links for end clients within a transmission range of up to 1km when paired with the IP-COM BS6 basestation.

Built with robust materials for outdoor installations, the ANT12-5G360 operates within a frequency range of 5100~5850MHz and features two RP-SMA radio connectors for secure connections. Its pole-mount design, compatible with diameters ranging from 30-70mm, allows for flexible and straightforward deployment in various environments.

Key Features

12dBi high-gain dual-polarized design for extended range and reliability.
360° horizontal and vertical beamwidth for comprehensive area coverage.
Supports operating frequency range of 5100~5850MHz.
Two RP-SMA radio connectors for secure and stable connections.

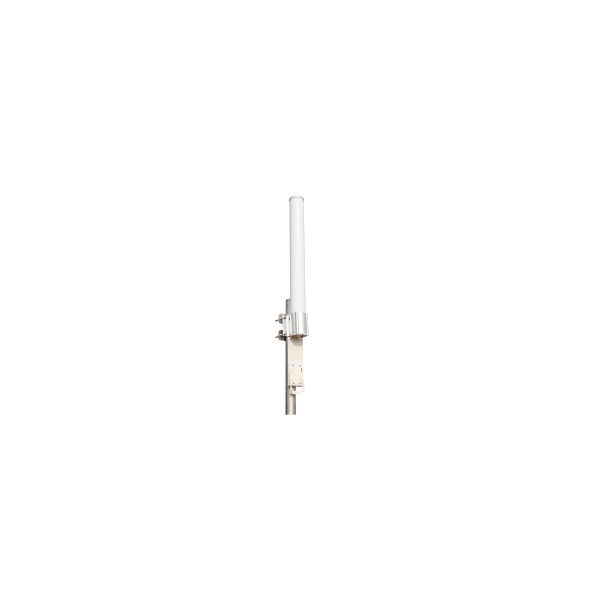

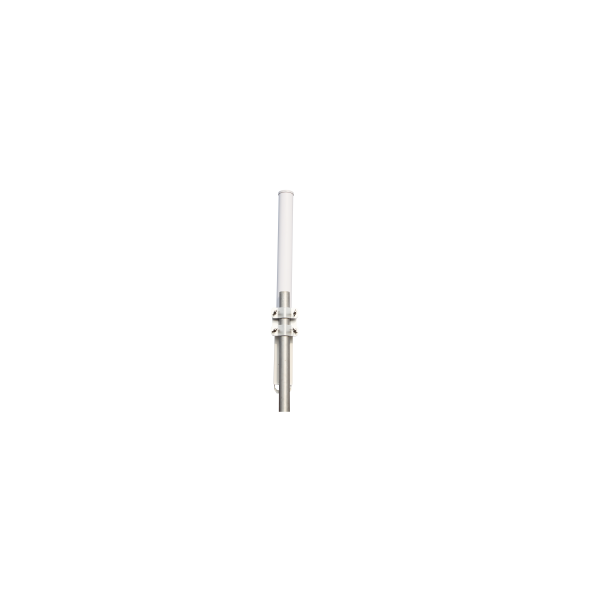

Durable construction suitable for outdoor installations with pole-mount compatibility (30-70mm diameter).
