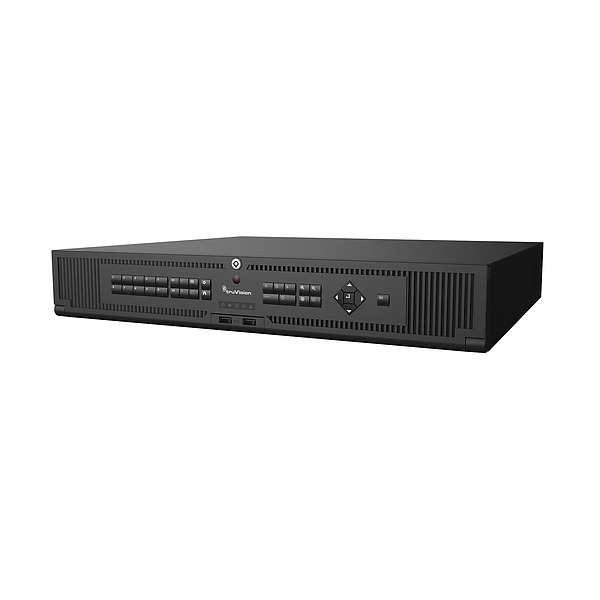

Network Video Recorder 8 Channel

Product Code: TRUTVN-2208S

Condition: New product

More details

Balcatta: 2

Geebung: 0

More info
Specifications
Download
Accessories
Videos

The TruVision NVR 22 from Interlogix (TVN 22) is a true H.264/H.265 network video recorder designed to support video streams from H.264 or H.265 IP cameras and encoders. With a total of 80 Mbps of incoming bandwidth available, the TVN 22 can support up to 8 cameras at HD resolution in real time (30fps) and many other configurations. Flexible bandwidth allocation per channel allows users to maximize recording performance.

In addition, the TVN 22 has familiar front panel controls that allow for easy operation, as well as browser, software and mobile device management tools. IP camera support includes resolutions ranging from standard VGA to 8.0 megapixel, including Interlogix® and third party IP cameras via ONVIF.* The TVN 22 also supports TruVision encoders for integrating existing analog cameras.

Up to four internal hard disk drives may be configured for a total internal hard drive capacity of 24TB, making the TVN 22 ideal for extended storage or megapixel camera applications. Recording options include continuous, motion, and alarm or combined scheduled recording modes. Motion recording utilizes an IP camera’s built in motion detection events, and alarms can be triggered from any of the 16 on board alarm inputs or from alarm inputs that reside on the IP camera.

Software connectivity allows remote access to the recorder’s full capabilities via Web browser or TruVision Navigator. TruVision Mobile also allows for remote device access. Configuration is quick and easy through startup wizards, IP device auto discovery tools and ezDDNS service.

Features

TruVision® IP cameras support from VGA ~ 8MPx
TruVision single and multi port encoders support
ONVIF Profile S support for 3rd party camera integration
RTSP Stream capability
H.264/H.265 compression supported
Up to 8 HD cameras in real time (30fps)
80Mbps for incoming streams
Continuous, motion, event or scheduled recording modes
Audio recording with capable IP cameras
Watermarking for video authentication
Up to 24TB of storage with front accessible hard disk storage
External hard drive (eSATA) support
Local USB archiving
Rack mountable – 1.5 RU
Intuitive and logical user interface
ezDDNS
Triple monitor support – HDMI, VGA and analog
16 on-board alarm inputs and 4 configurable alarm outputs
PTZ and dome camera control via mouse, front panel, IR remote or optional keypad
Compatibility with TruVision Navigator and mobile app software
Mac® Safari® browser plug-in
