> >Two Door Access Controller

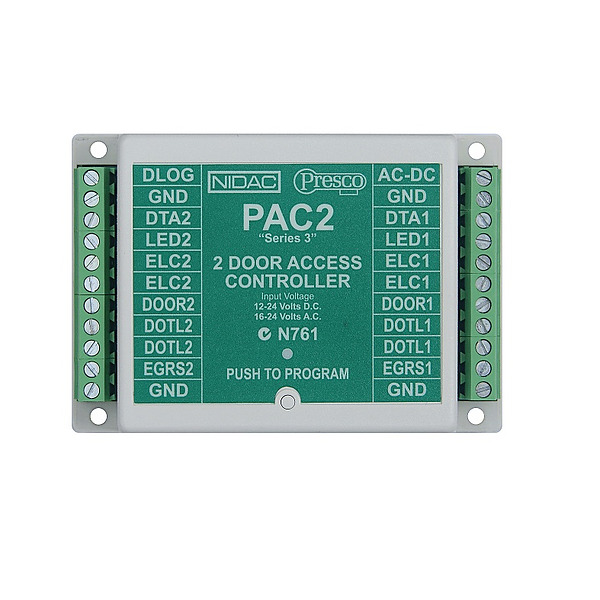

Two Door Access Controller View larger

Two Door Access Controller

PRENP-PAC2

New product

Two Door Access Controller

More details

Balcatta: 1
Geebung: 0

The PAC (Presco™ Access Controller) Door access controllers utilise proven microprocessor technology to operate an electric door locking device. Together with a Presco™ encoder, or other devices with the addition of a Presco™ Interface Module model PIM. The PAC offers affordable access control to restricted areas for up to 400 users.

With the Presco system the door controller and reader are separated, allowing the controller to do the code processing in a remote protected environment. The code is transmitted from the reader using only two wires, making installation simple and cost effective.

The door controller and reader can be separated by up to 1 kilometre using a 4 core non shielded cable.

Features

  • One and two door controllers
  • 400 Users
  • 10 readers can be connected to each PAC
  • Split system for maximum security
  • System uses low cost non-shielded cable
  • 12 to 24 Volts DC, 16 to 24 Volts AC
  • Heavy duty relay contacts for door control
  • Non-volatile memory will store all information for 10 years without power
  • 1minute lockout after 5 invalid attempts at entering a code (programmable)
  • Door Open Too Long (DOTL) facility
  • Door Forced Open detection
  • Automatic Re-lock feature
  • Accepts N.O or N.C Request To Exit (RTE) devices
  • Accepts Fail Safe or Fail Secure locking devices
  • Programmers code facility.
  • Colour Grey
  • Dimensions (H x W x D) 72 x 104mm x 27mm
  • Operating Temperature 0°C to 70°C
  • Users 400
  • Voltage 12-24V DC, 16-24V AC
  • Warranty 3 Years
  • Weight 150g
